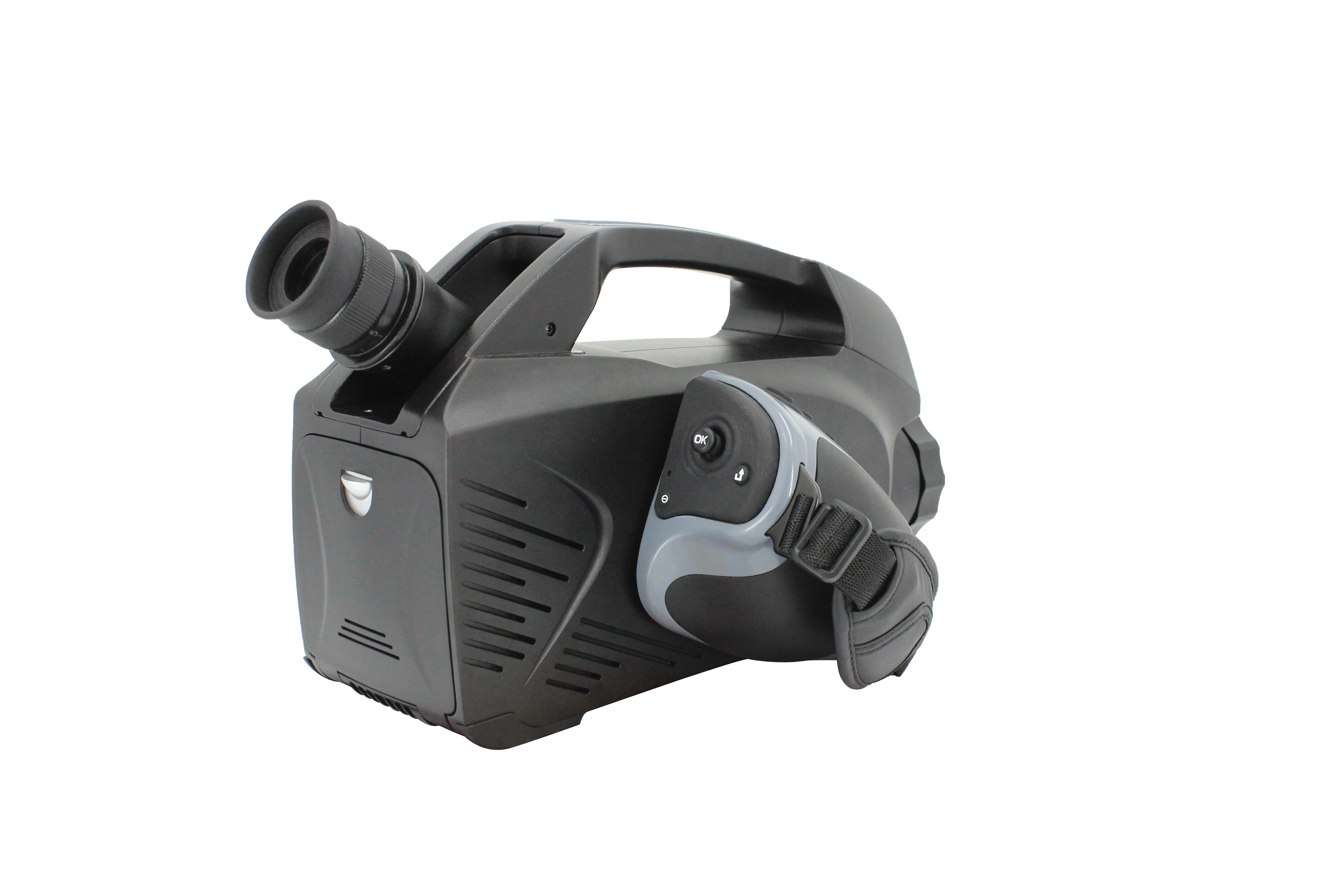

SV-HC3D
SUANGSI
| Availability: | |
|---|---|
| Quantity: | |
Imaging Performance
Detector Type | Focal plane array, cooled QWIP |
Detector Resolution | 384×288 |
Spectral Range | 3.1~3.5μm，CWL 3.3μm |
Detector Pitch | 30μm |
Focal Length | 50mm |
IFOV | 0.6mrad |
FOV | 11° × 8.8° |
NETD | < 15mK(@25°C,F#=1.0) |
Focus | Manual |
Image Frequency | 50HZ |
Optical Performance
Resolution | 5 Mega Pixle，CMOS |
Focus | Automatic Focus |
Fill-in light | High power double fill light lamp |
Laser Lamp | Level two，1mW/635nm RED |
Image Display
Display Screen | 5.7”LCD Highlight Display Screen |
Power Detection | Real-time battery power display, low battery prompt alarm |
OSD | Date/Time, Language, Temperature unit |
View Finder | 0.44” Color，Resolution 640*480 |
Power Detection | Real-time battery power display, low battery prompt alarm |
Color Palettes | 10 false colors such as white hot, black hot, iron red, etc |
Image Enhancement | Digital image enhancement, Noise reduction filter |
Image zoom | X1/X2/X4 |
Image Adjustment | Automatic/manual image contrast and brightness adjustment |
Temperature measurement performance
Accuracy | ±2℃ or ±2% of reading |
Range | -20°C~350°C |
Emissivity Correction | 0.01-1 can be set |
High temperature alarm | High temperature abnormal alarm |
Temperature measurement model | Point, line, and frame temperature measurement, 10 temperature measurement points, 5 regions, and 5 lines at the same time. Isothermal analysis, temperature difference measurement |
Background Temperature Correction | Yes |
Transmittance Correction | Target distance, temperature and humidity can be set |
Connections and Communications
Data | USB 2.0 |
Storage | MMC Memory Card （32GB MAX） |
Video Output | HDMI |
GPS | Yes |
Environmental Parameter
Encapsulation | IP54 |
Operating Temperature | -20°C～+40°C |
Operating Humidity | 0-95% |
Storage Temperature | -40°C～80°C |
Power
Power Supply | DC212V/3A |
Charge Mode | Charger or DC charge |
Battery Type | 44Wh SONY Li-ion battery |
Battery life | >2h at 25°C ambient temperature and typical use |
Product Specification
Power Consumption | 3.6W |
Size (L x W x H) | 345×195×190 mm |
Weight | ≤3Kg（incl battery） |
